Stage 7: 1.25-3" lift Tubular Suspension System Land Cruiser (2024+)

Product Description

The Stage 7 system is a complete suspension upgrade built for serious performance. Featuring remote reservoir 2.5 Series coilovers and rear shocks, tubular upper control arms with Delta Joint PRO, and dual-rate rear coils for smooth on-road ride and off-road control. Includes a billet adjustable rear track bar and tubular rear lower links for improved articulation, axle alignment, and durability in extreme conditions.

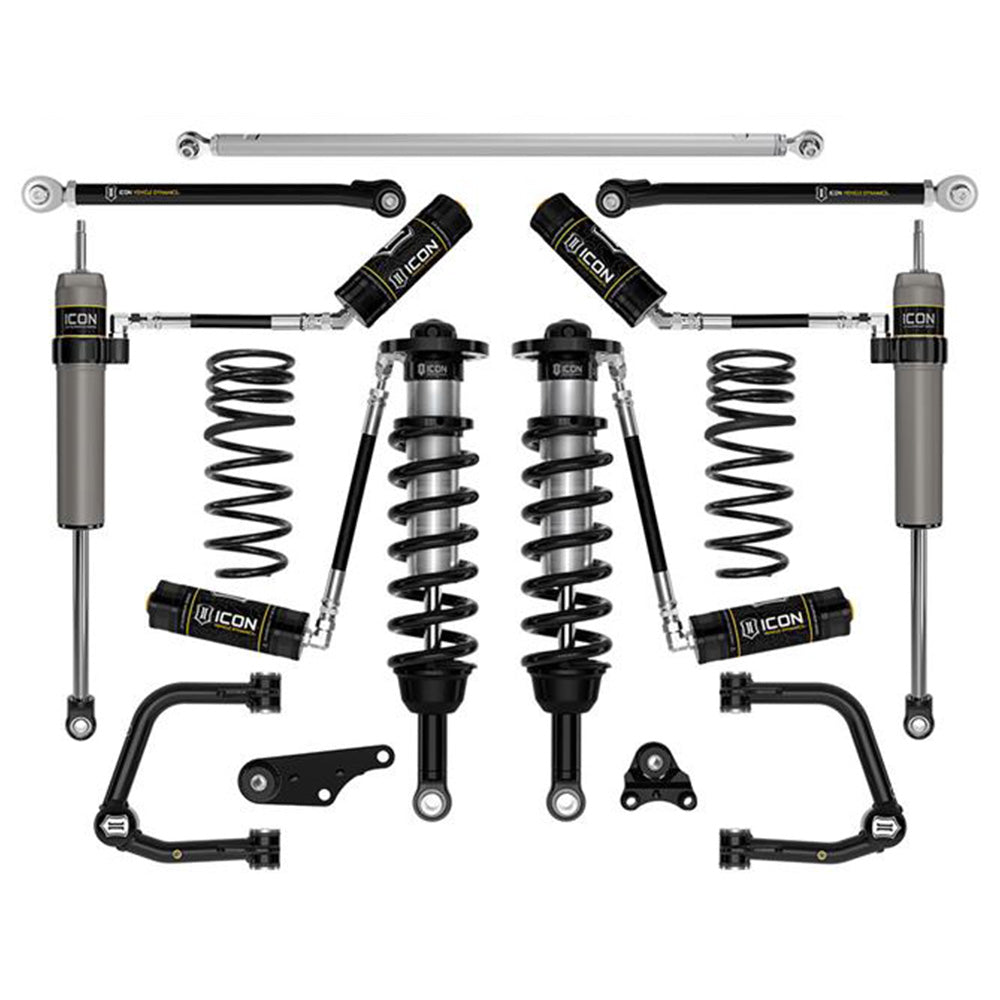

Included

• 1 - 2.5 VS RR coilover kit
• 1 - Tubular UCA Dj Pro kit
• 1 - Diff drop kit
• 1 - 0-3" Rear 2.5 vs rr pair
• 1 - 2" Dual rate rear spring kit
• 1 - Billet rear adj track bar
• 1 - Tubular rear lower link kit

Product Features

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Fitment Notes

• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range
• Works with OEM wheels and tires
• Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modification will be required)
