Stage 3: 1.25-3" Lift Billet Suspension System Land Cruiser (2024+)

Stage 3: 1.25-3" Lift Billet Suspension System Land Cruiser (2024+)

Regular price $3,692.65 USD
Regular price Sale price $3,692.65 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

ICON’s top-tier Stage 3 system delivers premium performance and control for your Land Cruiser with adjustable 2.5 Series coilovers, dual-rate rear springs, and billet aluminum upper control arms featuring Delta Joint PRO. This kit adds a billet adjustable rear track bar for precise axle alignment and includes everything needed for better ride quality, more wheel travel, and improved off-road capability—while staying smooth on pavement.

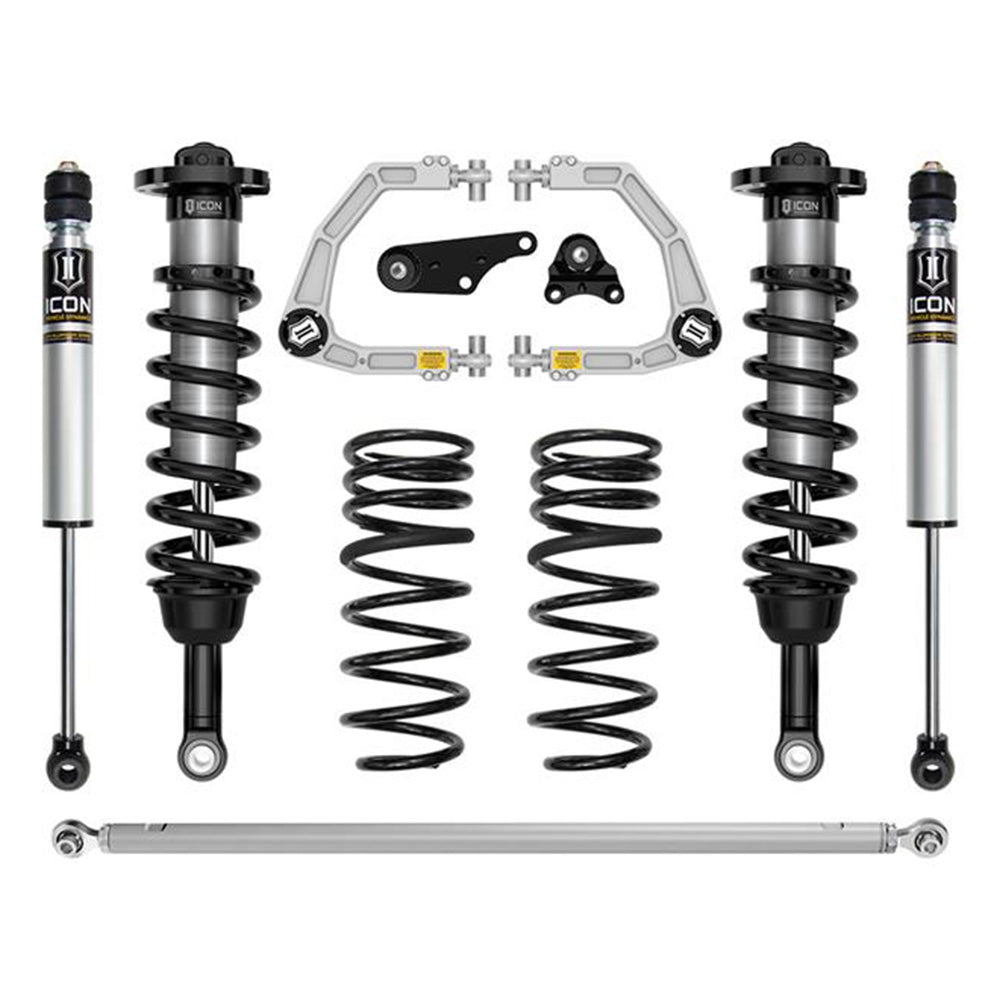

Included

  • 1 - 2.5  coilover kit
  • 1 - Billet UCA Dj pro kit
  • 1 - Diff drop kit
  • 2 - 0-3" rear 2.0 VS IR
  • 1 - Dual rate rear spring kit
  • 1 - Billet rear adj track bar

Product Features

  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Increased wheel travel and improved ride quality over stock
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
  • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

Fitment Notes

  • Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle
  • Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range
  • Fits OEM wheels and tires
  • Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
